Activity 4-5
[IL, CCT, CA, TL, B]

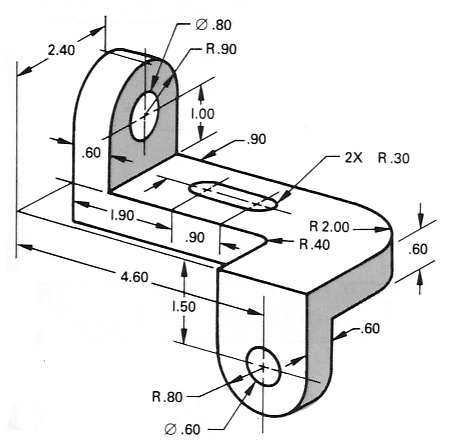

Create a 3 View (Front, Top & Right views) orthographic projection of the following object. In addition, create a layout (using an appropriate scale) and title block.

Units: inches

Save the drawing as "mv5" (multiview) inside your Unit4 folder.
