Activity 6 - 1
[CF, CA, TL, COM]

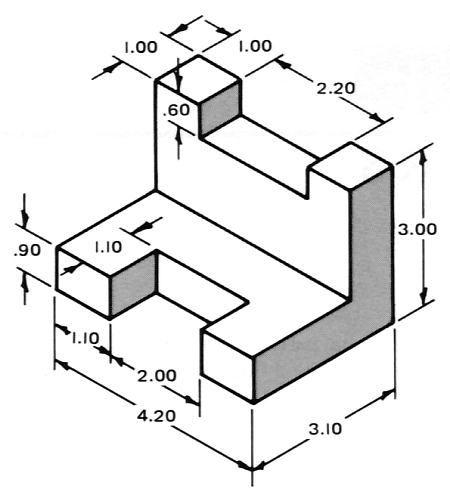

Create an orthographic projection of the following object (as many views as is necessary). When completed, dimension the object (as per the guidelines discussed within the unit). In addition, create a layout with title block. You determine an appropriate scale (of the layout) to fit the views and their respective dimensions onto an 8.5 x 11 sheet.

Units: inches

Save the drawing as "dim1"  inside your Unit6 folder.

Last Updated June 6/2001
