Capstone Project 2
[CF, CA, TL, COM]

If you choose this as your final drawing, then the project must contain:

• As many orthographic views as is necessary to describe the features of the product (and no more).
• One of the orthographic views must be a full or half-section. You must determine the most appropriate cutting plane line given the features of the product.
• The product must be dimensioned completely. All of the dimensions needed to construct the product must be provided. Be careful about over-dimensioning.

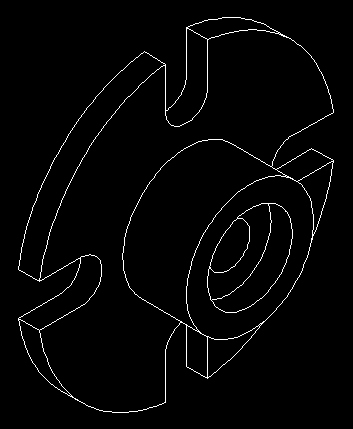

• Include a pictorial drawing of the product (oblique or isometric). Do not dimension the pictorial. Place and align the pictorial in a logical location within your drawing area. If the pictorial is an isometric, remember to scale it down to 80%.
• A layout (and title block) containing all of the above components (8.5 x 11). The various views within the layout must look balanced and be aligned properly.

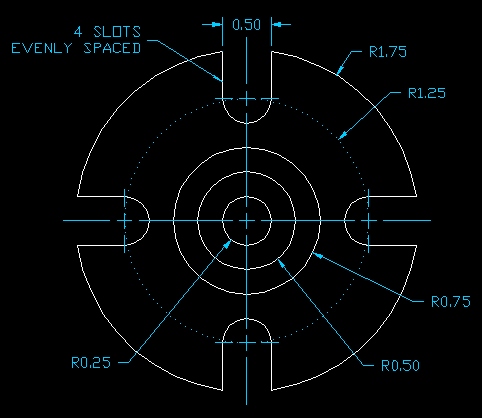

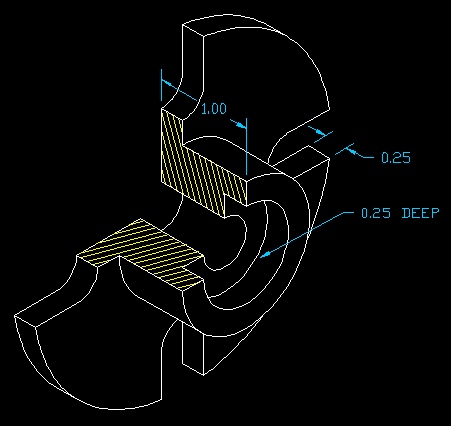

All the dimensions needed to construct the project are indicated in the two drawings below.

Units: inches

Save the drawing as "capstone2" inside your Unit8 folder.

Last Updated June 6/2001
